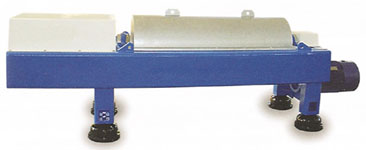

DWL400 series Horizontal Helical Centrifuge

Applying fields
    DWL400 series horizontal helical centrifuge can be designed into the different models and aspect ratios with the material separation features of viscous particles and smaller specific gravity difference.

Application scope
 The separation in the pharmaceutical industry
 The precipitation separation of vegetable oils
 Wheat starch separation
 Mud separation of the petroleum drilling
 TiO2 particle size grading
 Expensive soil grading and grading dewatering of kaolin particle size


Specification and Technical Parameter
Model Rotor Drum Parameter Power
(Kw)
Dimension
L×W×H
(mm)
Weight
(Kg)
Diameter
(mm)
Length
(mm)
Speed
r/min
"G" Fore
DWL400 400 1200 3200 2290 18.5or22
electromagnetic speed control
2960×1560×1050 1000
DWL400B 400 1200 3200 2290 22
Frequency speed control
3210×1560×1050 1000
