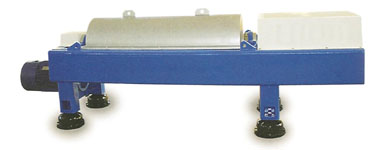

DWL350 series Horizontal Helical Centrifuge

Applying fields
    DWL350 series horizontal helical centrifuge can be designed into the different models and aspect ratios with the material separation features of viscous particles and smaller specific gravity difference.

Application scope
 The separation in the pharmaceutical industry
 The precipitation separation of vegetable oils
 Wheat starch separation
 Mud separation of the petroleum drilling
 TiO2 particle size grading
 Expensive soil grading and grading dewatering of kaolin particle size


Specification and Technical Parameter
Model Rotor Drum Parameter Power
(Kw)
Dimension
L×W×H
(mm)
Weight
(Kg)
Diameter
(mm)
Length
(mm)
Speed
r/min
"G" Fore
DWL350II 350 1200 3200 2005 7.5/3 3125×860×1250 1800
DWL350B 350 1520 3200 2005 11/4 3300×860×1100 2000
DWL350A 350 1520 2800 1535 22/7.5
18.5/5.5
3300×860×1100 2000
DWL350 350 1420 3500 2400 18.5/5.5 3200×860×1100 2000
