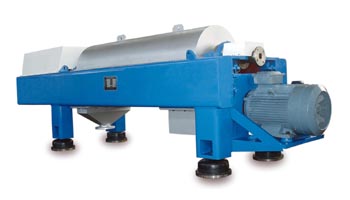

 Horizontal Helical Centrifuge Series (DWL series)
|
 Description
|
| The centrifuges of this series are separation equipment which continuously separates the suspending liquid by the way of centrifuge and sedimentation ,with continuous feeding, separation and discharge in the full speed. The machine which has the advantage of mass production, low cost, compact structure, easy maintenance. Especially when applied to the filter cloths uneasy to reproduce , and the suspending liquid whose concentration and particle size have a big change, it can always meet the dealing with hundreds of materials. |
 |
 High separating factor, best liquid,and stepless regulation of the rotor drum between the rotate speed and compensating rotate speed guarantees the good separation effect.
Double motors and double frequency-conversion design.
Adjustable height of the liquid surface. The height of the centrifuge liquid surface can be adjusted according to different materials.
Rotor drum components see a long life span by advanced differential gear and imported bearing in the design.
Adding transducer to the motor makes a start and a stepless regulation.
The major components are optimized in design, rotor drum and screw is applied by advanced balance technology to realize a three-dimensional balance.
More convenient operation and maintenance of the machine, thus improving the maintenance efficiency. |
| |

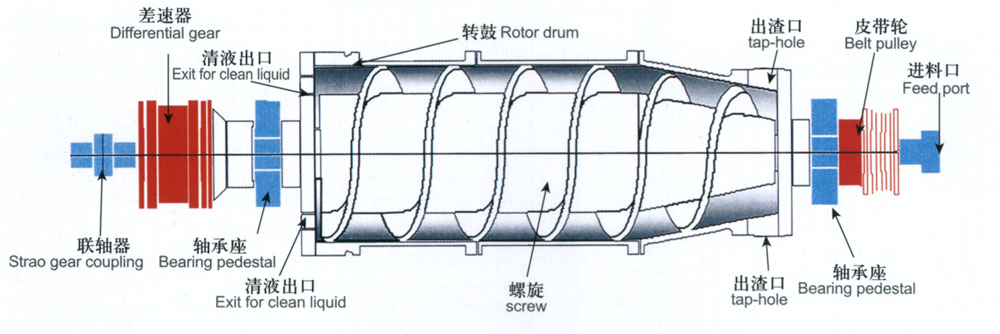

Structure principle diagram
|
 |
| |
|
