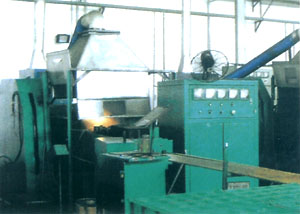

 ZW-TA Type Automatic Hot Former
|
| |
| The machine tool can heat the material with intermediate frequency heating of electric and ethane, liquid gas, make the single forming of products in the mould by using of the upsetting force of machine, and can be used for upsetting the irregular parts like round, hexagonal, barrel type,and value parts etc. With the technology, the requirements for material quality can be reduced, and the cost can be reduced; The single forming of products will reduce the working procedure; It can be used for upsetting parts with deep hole and multihole,which solves the problem of complicated parts; it can produce continuously which increases the efficiency. It is the ideal equipment which can solve the problem that cold heading technology can not solving, and it is the products for upgrading and replacing the process of punch heating and warm upsetting. |
| |
|
| |
 Technical Specifications
|
| Model |
Product Weight (g) |
Motor power (kw) |
Machine weight (kg) |
Frequency power (kw) |
| ZW-TA08 |
60 |
7.5 |
5000 |
60 |
| ZW-TA10 |
100 |
15 |
8000 |
80 |
| ZW-TA12 |
120 |
18.5 |
9000 |
100 |
| ZW-TA16 |
160 |
22 |
13000 |
120 |
| ZW-TA20 |
180 |
30 |
18000 |
150 |
| ZW-TA30 |
200 |
37 |
22000 |
200 |
|
| |
|
